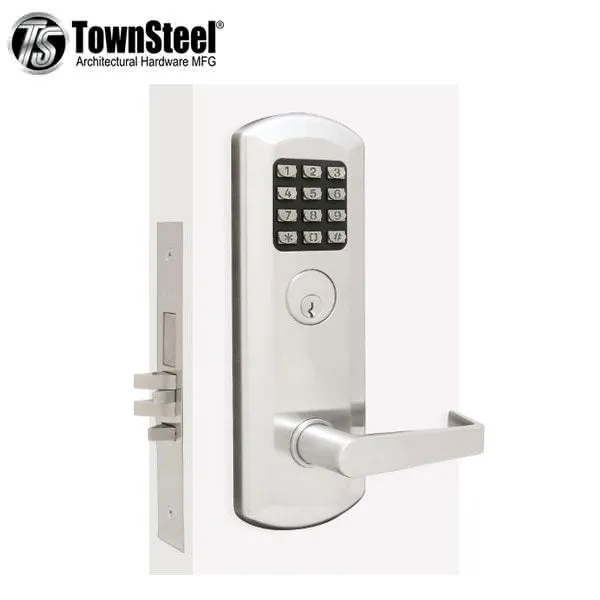

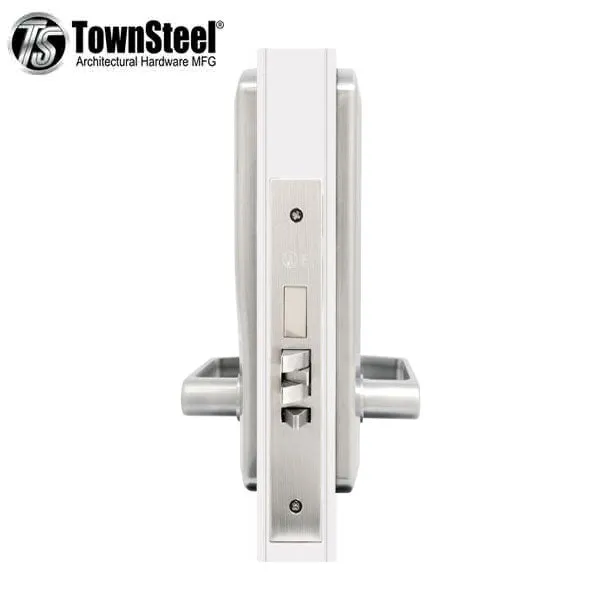

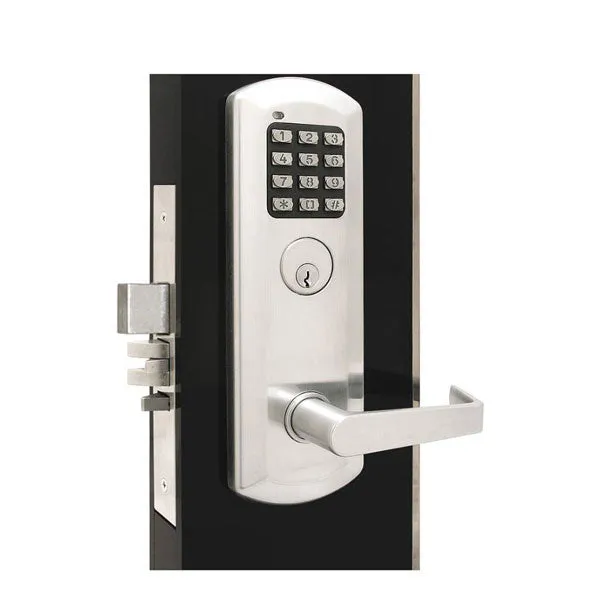

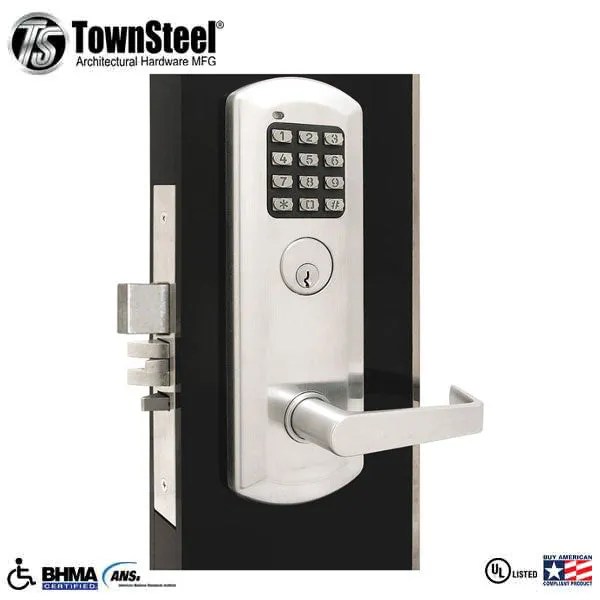

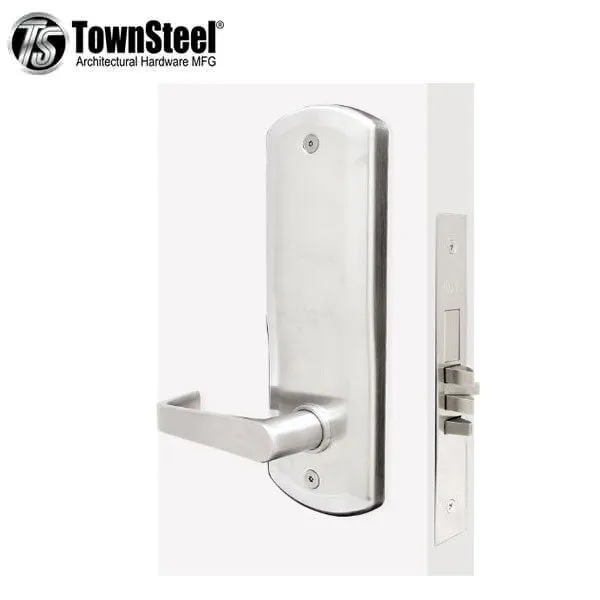

The XME-2000 is a standalone electronic function lock that provides keypad technology integrated with an ANSI Grade 1 heavy duty mortise lockset for greater security. Keypad technology simplifies the management of the system and provides ease of use. Maximum code capacity includes 1 master code, 90 user codes and 5 service codes. The XME-2000 provides two remote control terminals; One for a fore alarm system and the other for remote release by push button. The XME 2000 is quick and easy to program.
Features
-
Digital keypad mortise lock
- Use keypad to lock or unlock outside lever
- Mechanical key override
- Rigid lever trim
- ANSI/BHMA Certified heavy duty Grade 1 mortise chassis
- Easy installation, easy programming
Specifications
|
Electronic Specifications |
|
| Application |
Full indoor and outdoor |
| User codes |
Up to 90 |
| Communication |
Multi-colored LED and Sound |
| Power Supply |
4AA batteries |
| Battery Life |
Up to 2 years |
| Operating Temperature |
-31° to 151° F (-35° to 66°C) |
| Mechanical Specifications | |
| Chassis |
A156.13 certified Grade 1 Mortise |
| Handing |
Field reversible |
| Door Thickness |
1-3/4" standard |
| Backset |
2-3/4" |
| Latch Bolt |
Stainless Steel, anti-friction split, 3/4" throw |
| Faceplate | 1-1/8" x 8" |
| Escutcheon |
Wrought steel or zinc alloy, plated to match finish symbols |
| Lever | Sentinel Lever, Forged brass or cast zinc |
| Strike | ANSI strike, 1-1/4" x 4-7/8", steel plated |
| Cylinder Specifications | 6 pin Schlage “C” Keyway, standard |
| Finish | US26D- Satin Chrome |
| Fire Rated | 3 Hours |
| Certifications | ANSI/BHMA A156.13 Grade 1 certified ANSI/BHMA A156.25 -- Meets or exceeds all applicable requirements UL/ULC -- UL 10C 3-hour rated BAA -- Meets guidelines of the Buy American Act ADA --- Meets requirements of the Americans with Disabilities Act RoHS -- Meets requirements of EU RoHS Directive 2002/95/EC FCC -- FCC part 15 certified |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-088, or visit their support page . Once you have the ticket contact UHS Hardware for the return.
