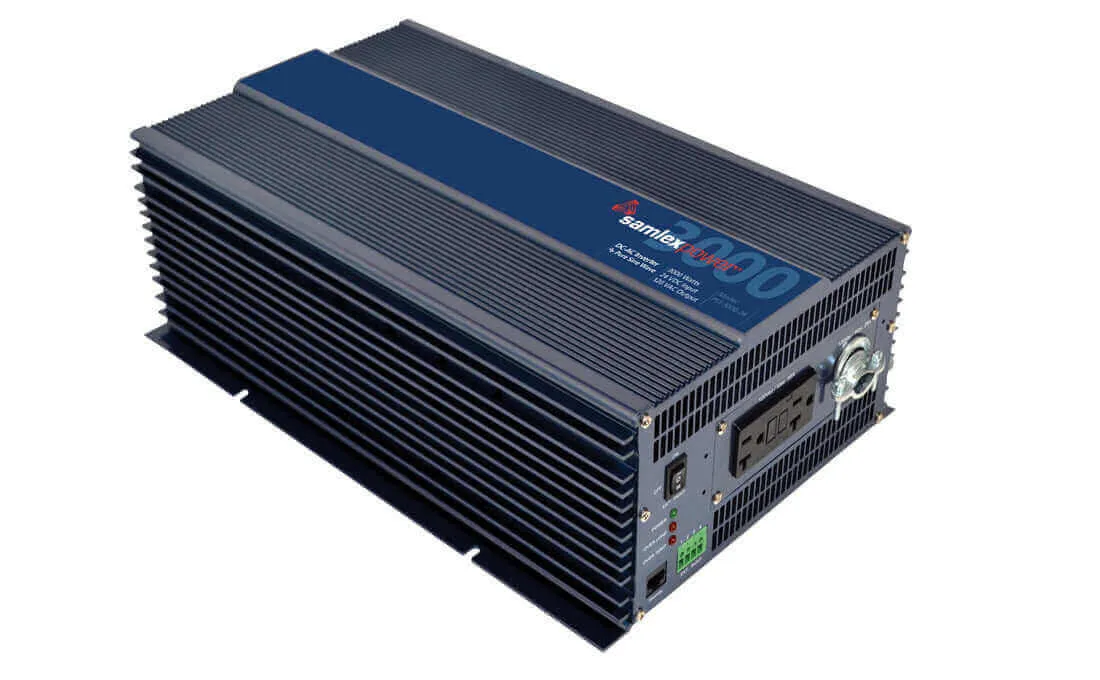

Samlex PST-3000-24

3000 Watt Pure Sine Wave inverter

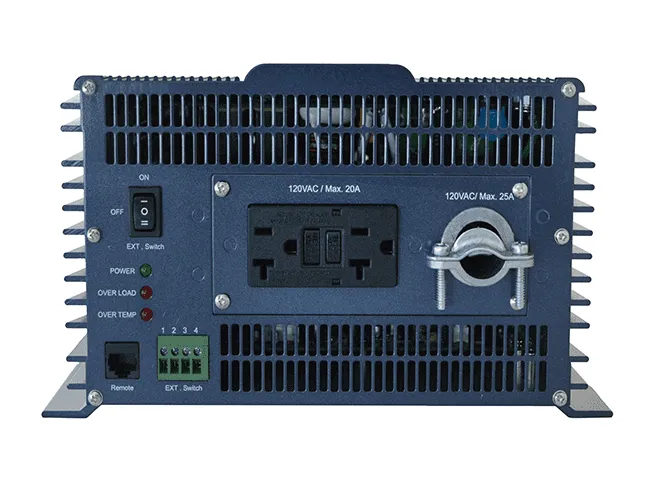

This high efficiency pure sine inverter converts 24 Volts DC to 3000 Watts of AC power at 120 Volts, 60 Hz. Features include temperature controlled cooling, low interference, wide temperature operating range, overload protection, low battery alarm / shut down & low idle power draw. AC power is available from dual NEMA-20R GFCI outlets on the front panel, the unit is also hard wire capable. Safety certified to UL and CSA standards, FCC Compliant.

Optional remote control (sold separately): Model

Also available in a 12V model

3 Year Limited Warranty

Features

• High efficiency & low RF emissions
• Can be hard wired
• 2x Surge
• Wide DC input range
• Dual GFCI Protected Outlets
• Wide temperature operating range -20 to 40°C / -4 to 104°F
• Temperature controlled cooling fan
• Low idle power draw
• Remote Input – Use to turn inverter ON or OFF with ignition start or any other Remote ON/OFF switch
• Optional remote control (sold separately): Model
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, overload and short circuit
• Safety certified to UL & CSA standards, FCC compliant

Specifications

• Input: 24 VDC
• Output: 120 VAC
• Watts: 3000 Watts
• Remote Control: RC-300
• Weight: 21.6 (lbs)
• Weight: 9.8 (kg)
• Dimensions: 10.35 x 17.97 x 5.71
• Dimensions: 263 x 456.5 x 145 (mm)
• Safety: UL, CSA

Applications

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers
