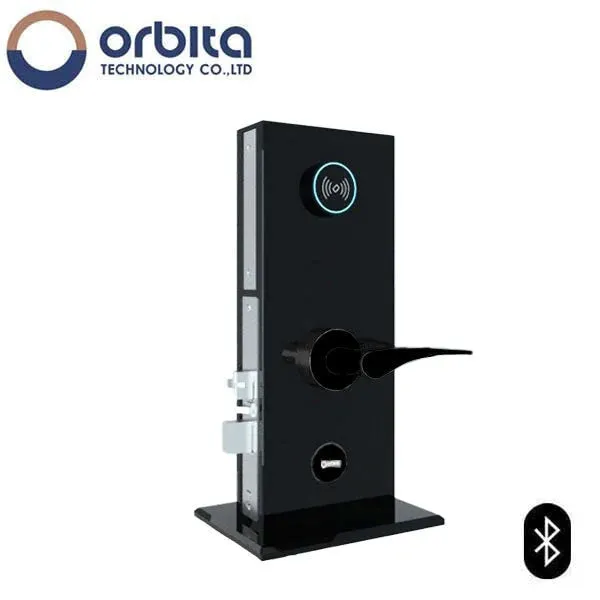

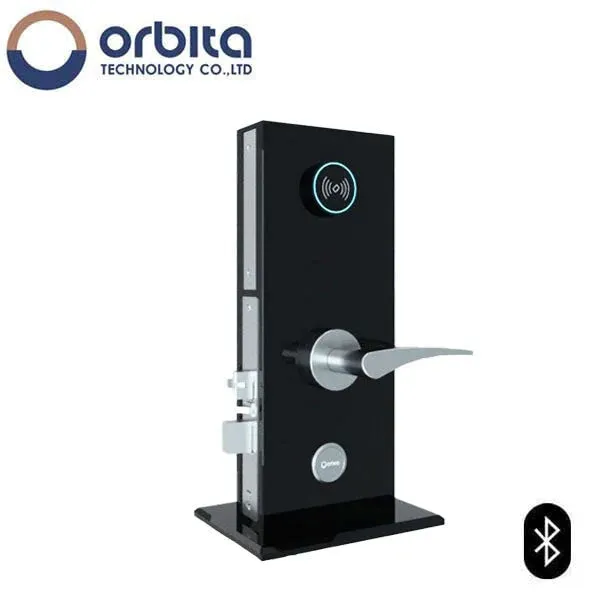

OTC-S3074SBT

Orbita is a reputable hospitality products manufacturer with ISO certified 46,000 square meters garden factory, established to offer the best quality products with professional and effective service to our customers. All of ORBITA products are CE, FCC, RoHS marked and ORBITA is one of the few brands in this industry that passed 800,000 times BHMA standard circling test.

Features:

- See Orbita MiFare and Bluetooth Software Download Center

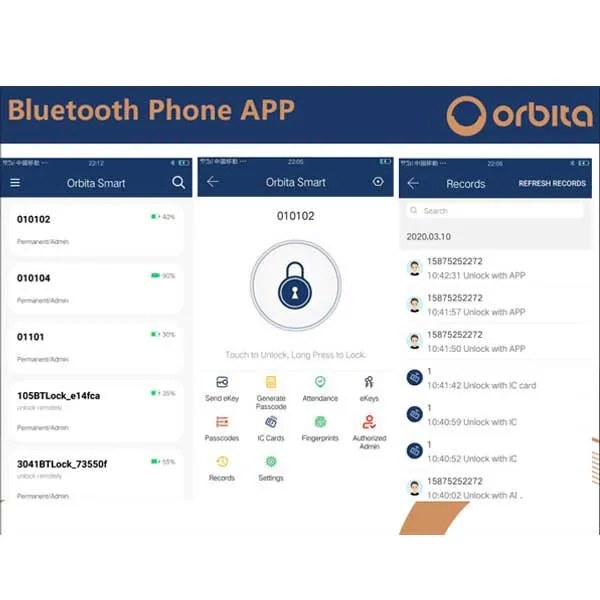

- Unlock with Bluetooth APP, Mifare card and key (sold separately)
- APP Support: Android 4.3/IOS7.0 and above
- Mifare Technology, Bluetooth 4.1 standard
- 304 Stainless Steel panel and handles
- Inside Deadbolt, Inside handle retracts latches and deadbolt
- 5 latch ANSI U.S. standard mortise
- 4 pc AA Cell, minimum 12 months lifespan.
- Low Voltage warning.
- Classified Access Authorization
- General Master, Building master, Emergency card, House Keeping card...
- Lost card suspension.
- Common door function like Swimming pool, Gym, fitness center.
- Meeting room function

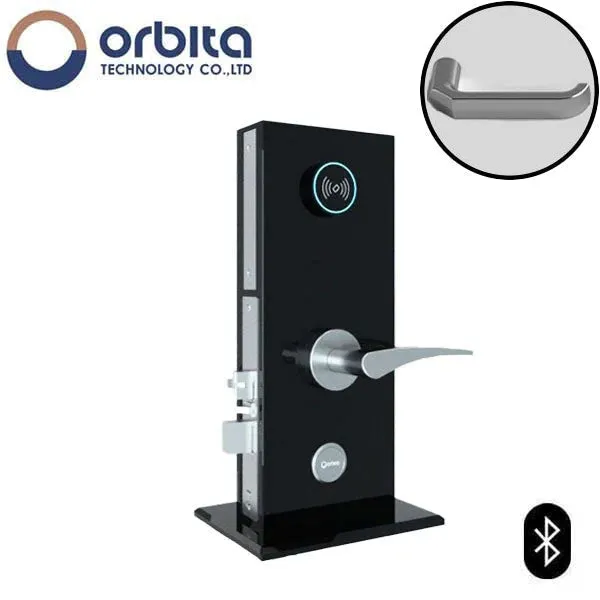

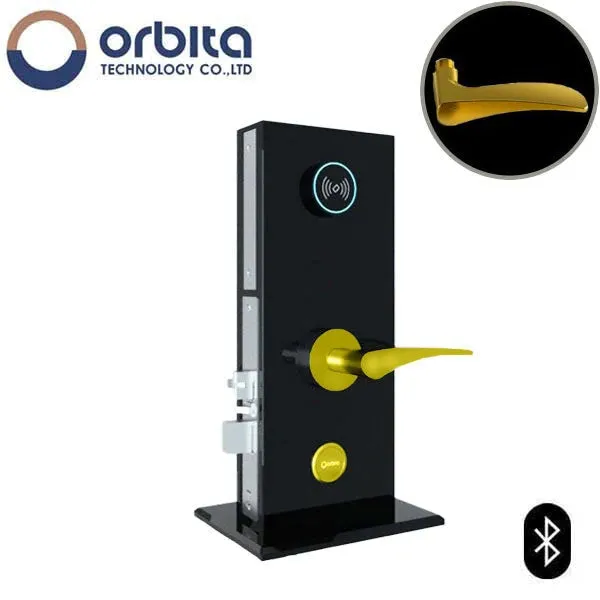

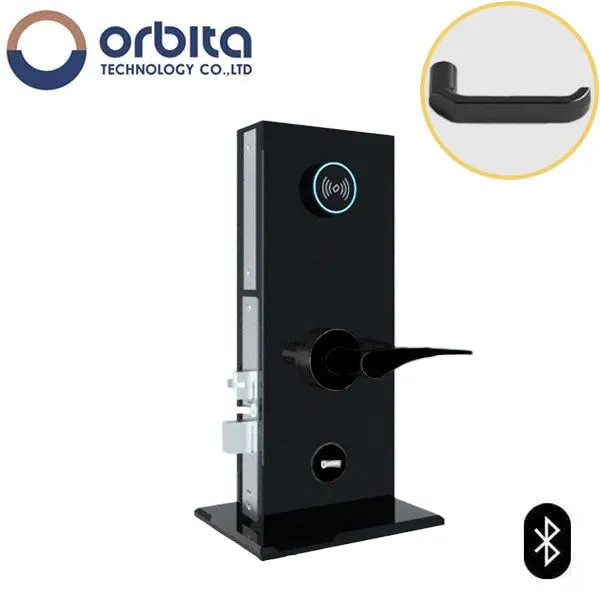

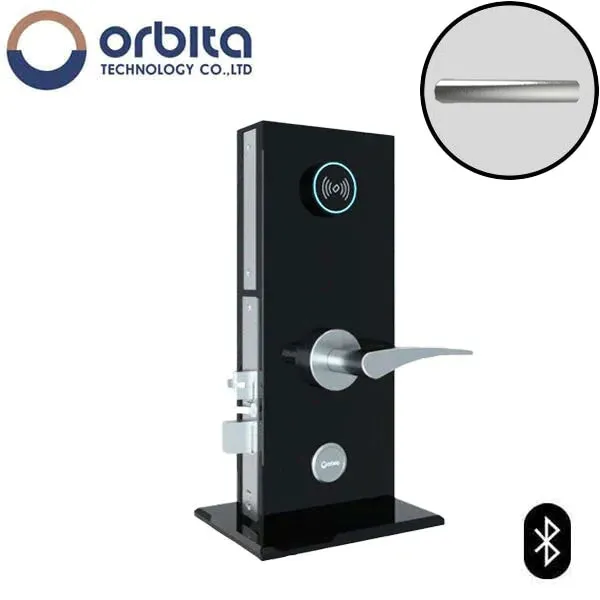

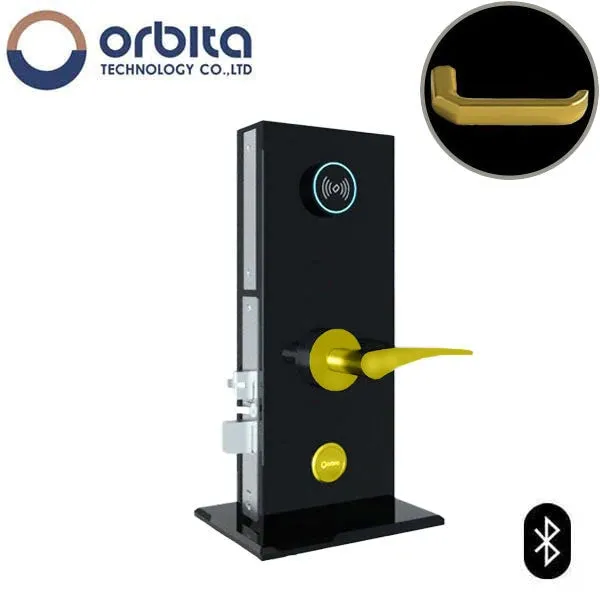

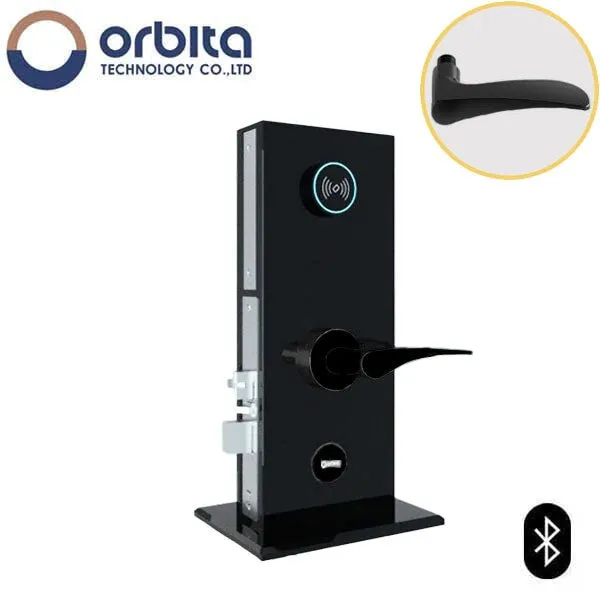

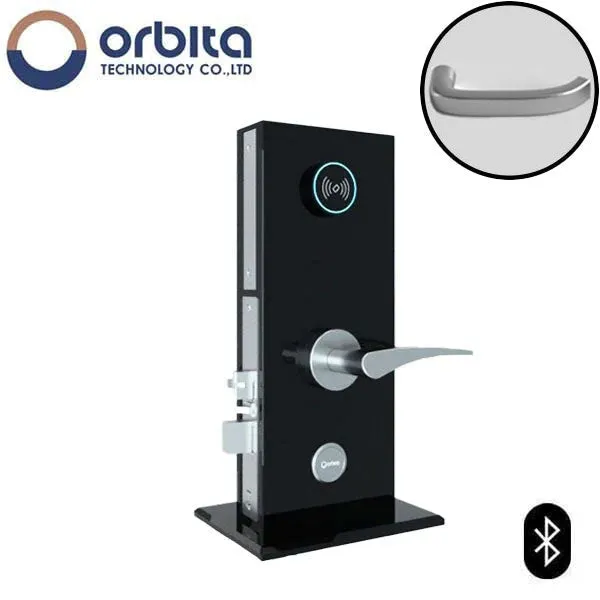

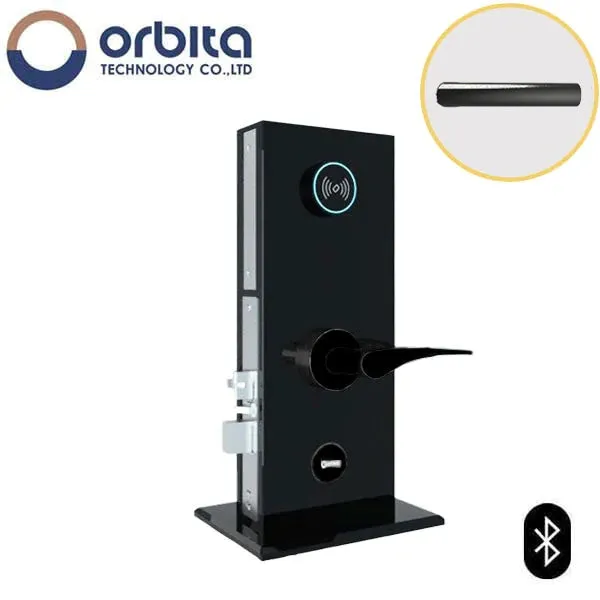

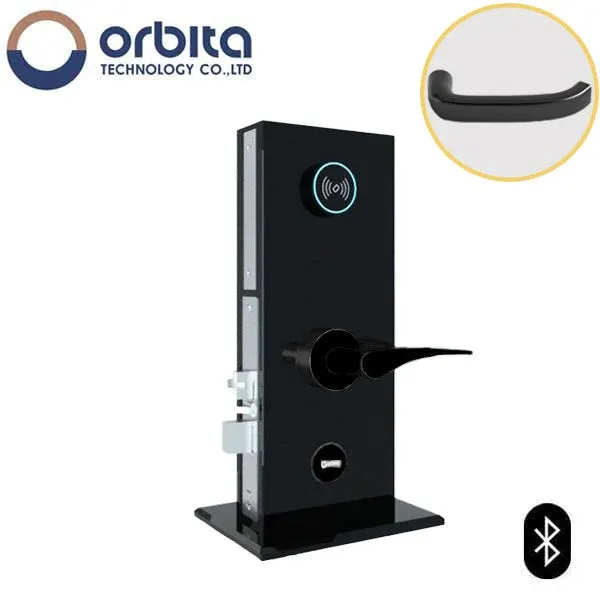

72 - Ares Return	41 - Minerva Return	92 - Mars Return	74 - Neptune Straight No Return	30 - Apollo Straight No Return

Specifications:

Material:	304 Stainless Steel

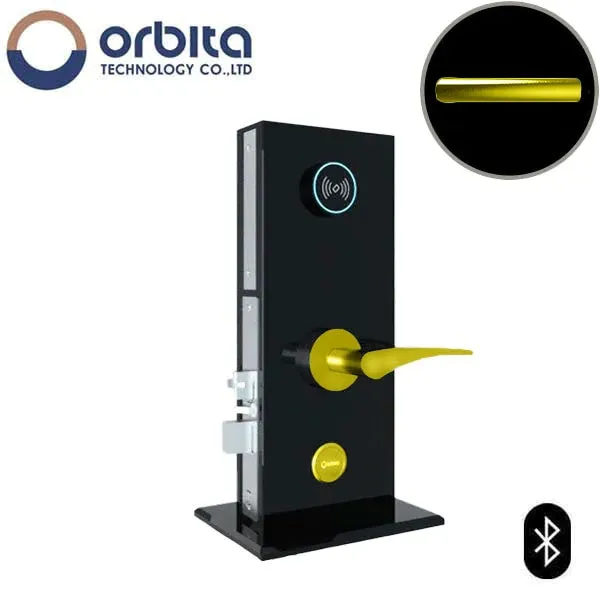

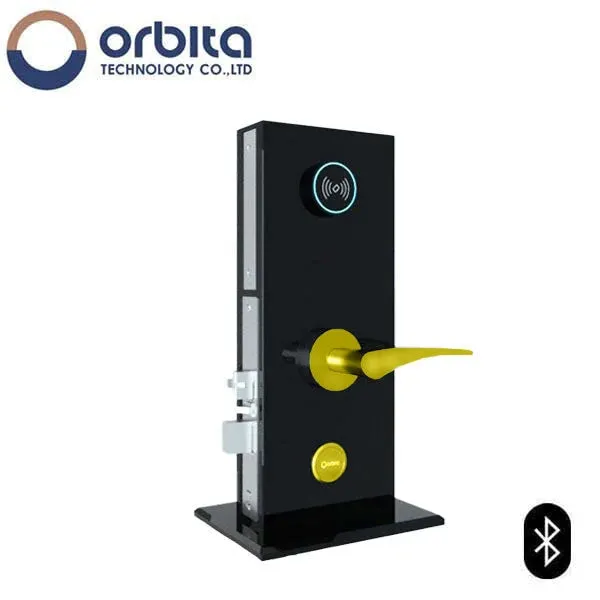

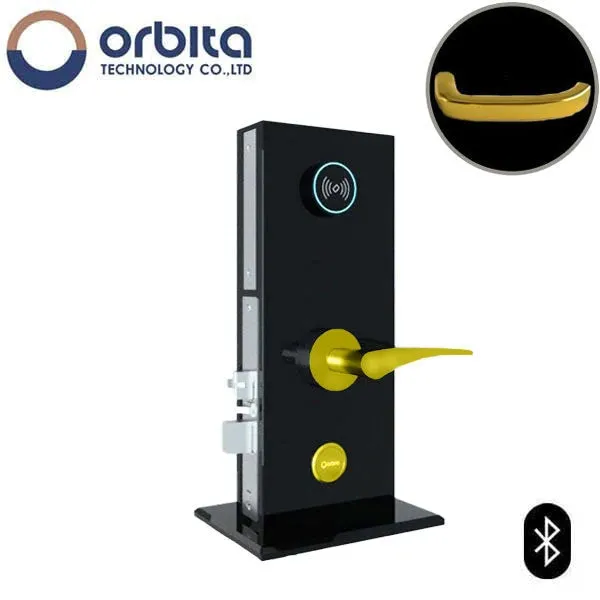

Finish:	Silver Gold Black
Lever Style:	72 - Ares Return 41 - Minerva Return 92- Mars Return 74 - Neptune - Straight Return 30 - Apollo - Straight No Return
Working Voltage:	DC6V or 4 AA Alkaline batteries
Low Voltage Alarm:	＜4.8V
Door Thickness:	35-70mm (1.38-2.75in.)
Operating System:	Fidelio / OPERA
Unlocks By:	Bluetooth APP, Mifare card, and key
App Support:	Android 4.3/IOS7.0 and above
Keycard:	Mifare 1K card, compatible with Mifare Energy Saver
Mifare Tech:	Bluetooth 4.1 standard
Unlocking Record:	1680PCS
Access Levels:	Classified, General Master, Building master, Emergency card, and House Keeping card
Functions:	Passage / Meeting Room
Cycles:	800,000

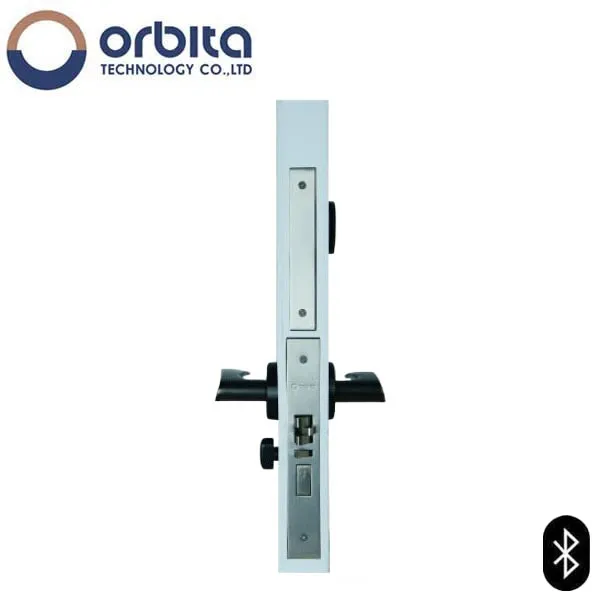

Lock Body:	5 latch ANSI U.S. standard mortise
Working Environment:	-20℃~60℃
Dimensions:	L109mm x W31.8mm x H203.5mm (4.29 x 1.25in x 8.01in)
Certifications:	CE, FCC, ANSI 156.13 / 156.25 Grade 2
Manufacturer's Warranty:	10 Years



Downloads:

• See Orbita MiFare and Bluetooth Software Download Center



NOTE: This Item Does NOT Qualify for FREE Shipping - Please contact your sales representative to get shipping costs. Call 1 (561) 590-1151 between Monday and Friday 9AM-6M EST for freight shipping costs
