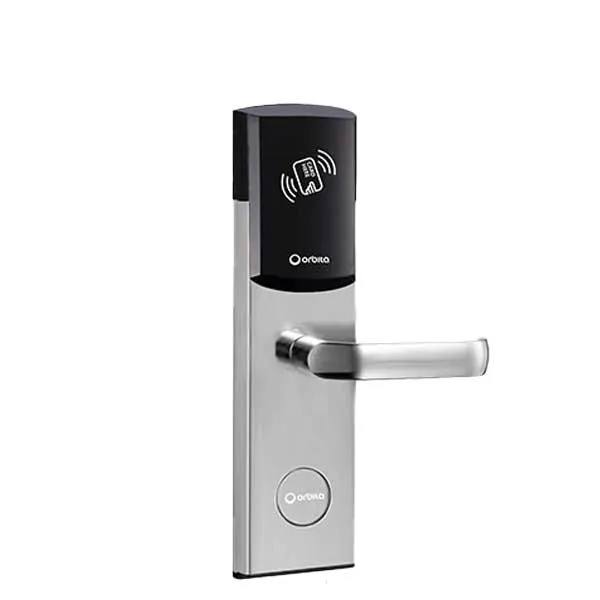

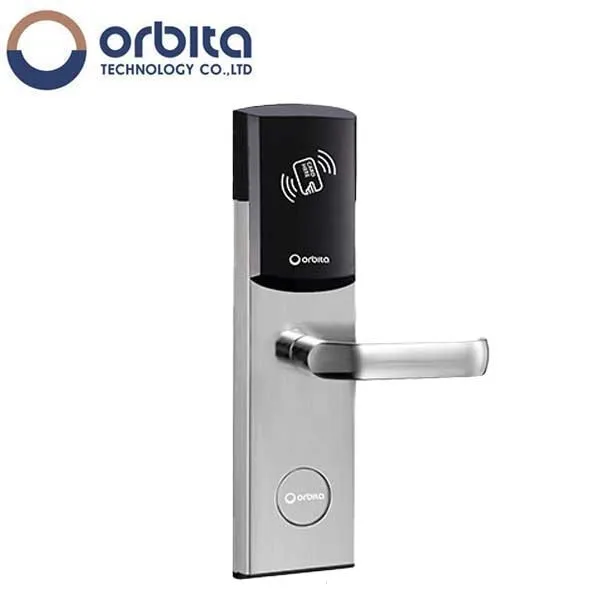

OTC-E3092

Orbita is a reputable hospitality products manufacturer with ISO certified 46,000 square meters garden factory, established to offer the best quality products with professional and effective service to our customers. All of ORBITA products are CE, FCC, RoHS marked and ORBITA is one of the few brands in this industry that passed 800,000 times BHMA standard circling test.

Features:

- See Orbita MiFare and Bluetooth Software Download Center
- Interface with most of the PMS system, Fidelio/Opera registered
- CE & FCC Certified
- Stainless steel color lasts more than 10 years
- ANSI Standard mortise
- Inside Deadbolt, Inside handle retracts latches and deadbolt
- Mifare 1K card, compatible with Mifare Energy Saver (card sold separately)
- Lost Guest Card suspension simply by issuing a new guest card with suspending function
- Multiple operators with different card issuing authorization
- Low battery voltage warning.(Lower then 4.8V).
- Self Error detecting with “Beep”
- Passage Model function available
- Can be integrated with 16 public areas such as Lift/Parking/Swimming Pool/Sauna Room/Tennis Court/Gym... etc
- Optional Lever Style
- Hotel Door Locks

72 - Ares Return	41 - Minerva Return	92 - Mars Return	74 - Neptune Straight No Return	30 - Apollo Straight No Return

Specifications:

Material:	304 Stainless Steel
Finish:	Silver Gold Black

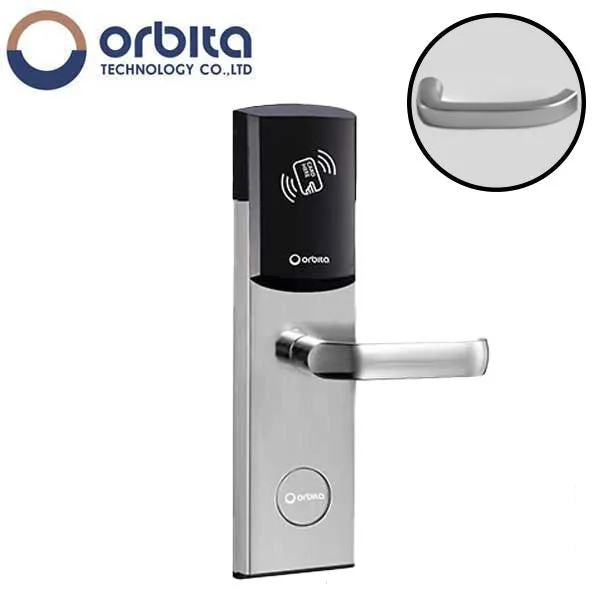

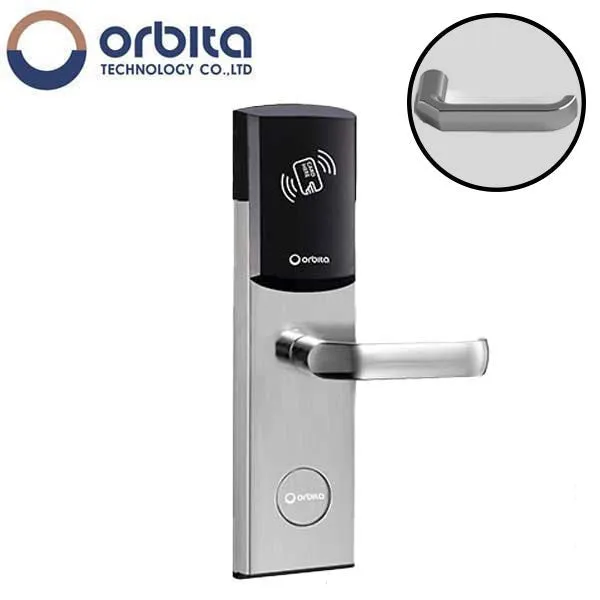

Lever Style:	72 - Ares Return 41 - Minerva Return 92- Mars Return 74 - Neptune - Straight No Return 30 - Apollo - Straight No Return
Working Voltage:	DC6V or 4 AA Alkaline batteries
Low Voltage Alarm:	＜4.8V
Door Thickness:	32-70mm (1.26 - 2.76in)
Operating System:	Most of the PMS system, Fidelio/Opera
Keycard:	Mifare 1 card, compatible with Mifare Energy Saver
Unlocking Record:	1680PCS
Access Levels:	Classified, General Master, Building master, Emergency card, and House Keeping card
Functions:	Passage model
Cycles:	800,000

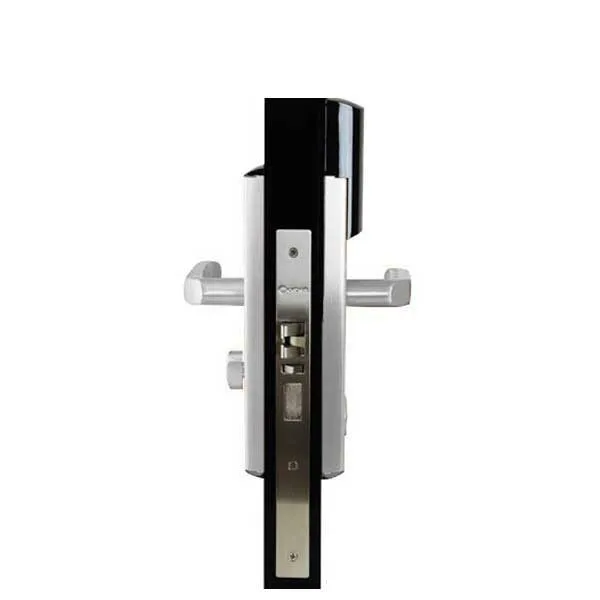

Lock Body:	5 latch ANSI U.S. standard mortise
Working Environment:	-20℃~60℃
Dimensions:	L295mm x W76mm x H17mm (11.6in x 2.99in x 0.67in)
Ingress Protection:	IP54 / Flame Retardant
Certifications:	CE, FCC, ANSI 156.13 / 156.25 Grade 2
Manufacturer's Warranty:	10 Years

Downloads:

• See Orbita MiFare and Bluetooth Software Download Center
