Product Details
＋

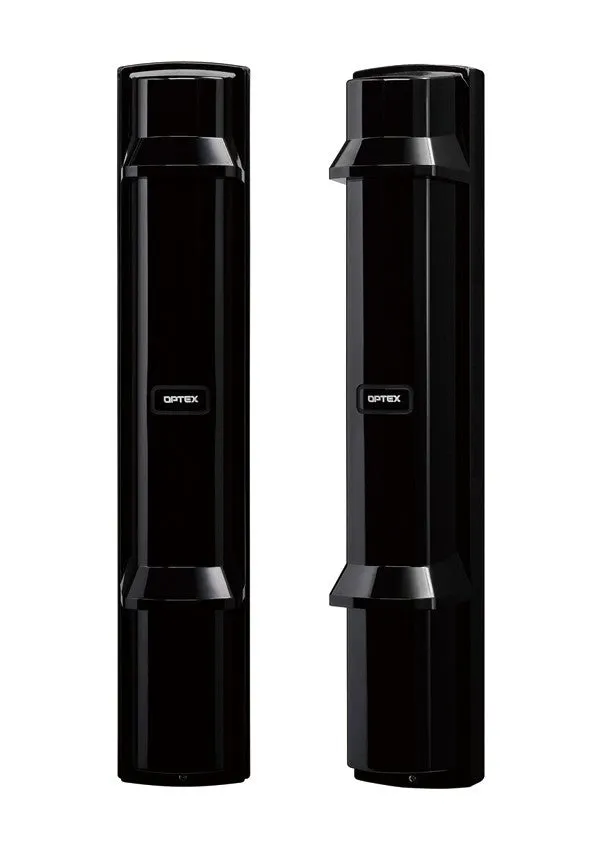

PN / OPT-SL-200QN *
Description: The new SL-200QN includes even more features to protect against false and missed alarms caused by mis-alignment and environmental issues. With 200ft. of outdoor detection range, the QN model is perfect for mid level security perimeter applications. New features include:
Quad beam - Dramatically cuts down on false alarms caused by birds and falling leaves
Sniper ViewFinder and aligmnet dial - The new telescope lens on the SL Series has a high level of visibility for optical alignment work. Even at 200ft., a perfect installation and stable performance can be achieved in minimal time.
BAU-4 Compatible - The BAU-4 beam alignment unit automatically and accurately adjusts the optical access. This allows peak performance and gives one technician the ability to align a 200ft to 650ft SL detector without additional help.
Features:
- 200ft. outdoor detection range
- IP65 rated
- Alignmnet dial
- Sniperviewfinder with x2 magnification
- Vivid interior color
- Quad beam detection pattern
Technology:
Active Infrared
Wiring:
Wired
Installation:
Commercial
Residential
Indoor/Outdoor:
Indoor
Outdoor
Product Type:
Detector
Tamper:
Yes
Zone:
Approach
Perimeter
Interior
Power Input:
10.5 - 30VDC
Alarm Output:
Form C relay : 30VDC, 0.2 A
Current Consumption:
38mA (Transmitter: 8mA Receiver: 30mA)
Operation Temperature:
-13°F - 140°F (-25°C - 60°C)
Dimensions:
17.6" H x 3.1" W x 3.8" D
