Product Details
＋

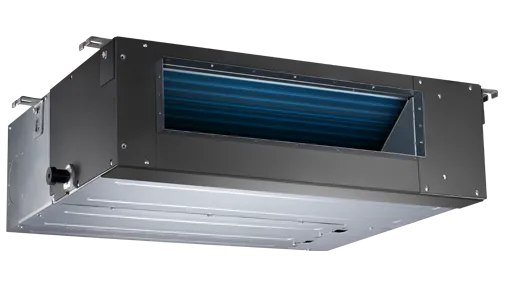

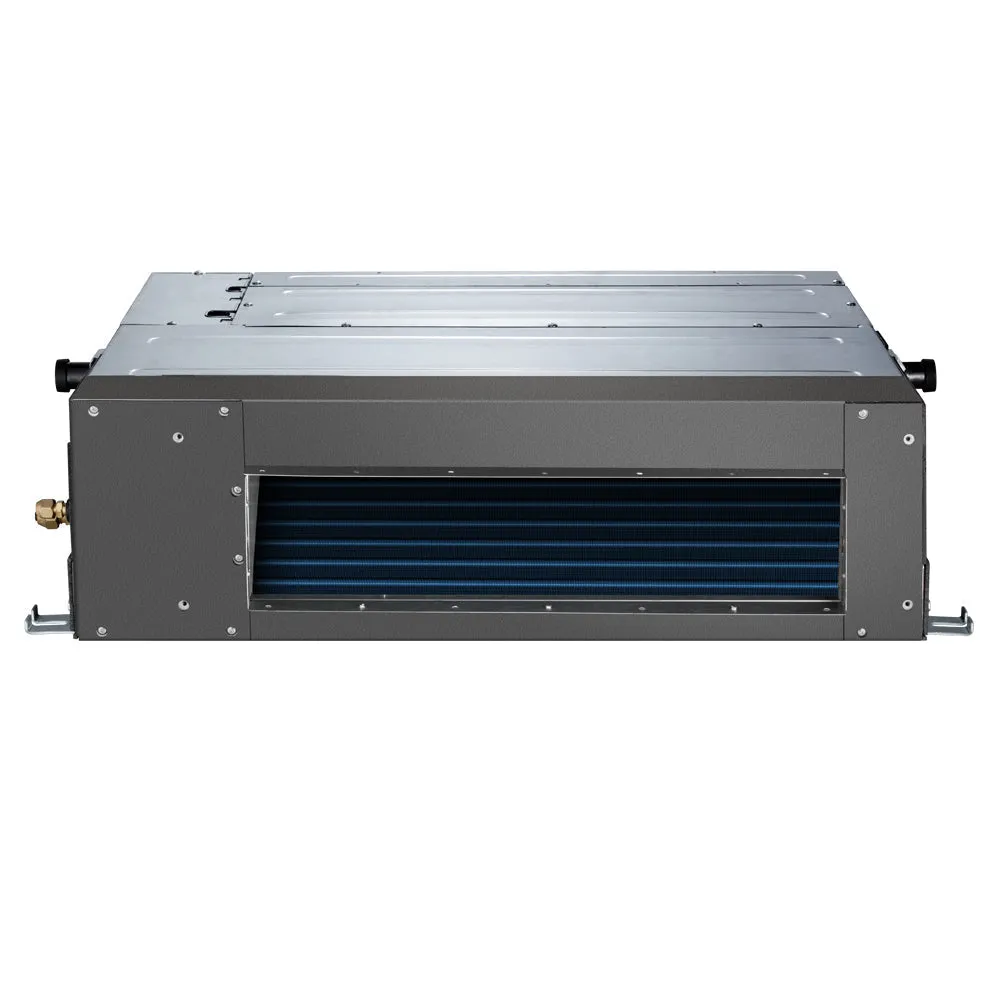

MRCOOL® Olympus 24,000 BTU 2 Ton Ducted Mini-Split Air Handler 230V/60HZ - DUCT-24HP-230
The MRCOOL® Olympus 24,000 BTU 2 Ton Ducted Mini-Split Air Handler 230V/60HZ - DUCT-24HP-230 has power to heat and cool and then some. You'll love this machine's ability to deliver pinpoint comfort with features like Louver Position Memory, Auto Swing, and Sleep Mode. Auto Restart gets your system running again in no time after a power outage. Should a low-coolant situation develop, Refrigerant Leak Detection will sound an alarm before the system's compressor can sustain any damage.
Note: This unit is the Air Handler only, if you need a complete system, please click the link below:
Features
- Installation by a licensed professional required where applicable
- 7 year compressor warranty and 5 year parts warranty
- Compatible with both MRCOOL Hyper Heat and Energy Star Condensers
- For use in single-zone or multi-zone setups. Multi-zone technology gives you flexibility and control whenever and wherever you want it.
- R-410A environmentally friendly refrigerant
Specifications:
| BRAND | MRCOOL |
| SERIES | Olympus Multi |
| MODEL | DUCT-24HP-230 |
| GTIN | 00853962006548 |
| UPC | 853962006548 |
| UNIT TYPE | Mini Split |
| SHORT DESCRIPTION | Olympus 24,000 BTU 2 Ton Ducted Mini-Split Air Handler - 230V-60HZ |
| CFM | 435.14/693.47/775.93 |
| TONNAGE |
2 |
|
COOLING CAPACITY (BTU) |
24000 |
|
HEATING CAPACITY (BTU) |
24400 |
| VOLTAGE | 208/230V |
| PHASE |
1 |
| CYCLE | 60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
2.5 |
| MOUNT TYPE |
Ducted |
| MAX COVERAGE AREA |
2000 |
|
REFRIGERANT TYPE |
R-410A |
| DECIBEL RATING (DBA) |
50/46/45 |
| DECIBEL RATING LOW (DBA) |
45 |
|
DECIBEL RATING HIGH (DBA) |
50 |
|
AIR FLOW DIRECTION |
Ducted |
| NUMBER OF SPEEDS |
Variable |
| OSCILLATION | No |
| INVERTER | Yes |
| LIQUID LINE FITTING | 1/2 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE FITTING | 3/4 |
| SUCTION LINE SIZE | 5/8 |
| CONTROL TYPE | LED |
| BLOWER MOTOR RPM | 1020/840/750 |
| AUXILIARY HEATER INCLUDED |
No |
| AUXILIARY HEATER AVAILABLE |
No |
| LOW VOLTAGE COMPENSATION | No |
| OVERLOAD PROTECTION |
Yes |
| ADJUSTABLE THERMOSTAT | Yes |
| FAN ONLY OPTION |
Yes |
| QUIET MODE |
Yes |
| SLEEP MODE | Yes |
| AUTO COOL |
Yes |
| WIFI COMPATIBILITY |
No |
| APP COMPATIBILITY |
No |
| WORKS WITH IOS |
No |
| WORKS WITH ANDROID |
No |
| REMOTE CONTROL INCLUDED | Wired |
| UL LISTED | Yes |
| CSA LISTED | No |
| ETL LISTED | Yes |
| ENERGY STAR COMPLIANT |
Yes |
| ENERGY STAR CERTIFIED |
Yes |
| AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
5-year Parts/7-year Compressor/1-year Remote |
| BASE WARRANTY | None |
| REGISTERED PARTS WARRANTY |
5-year |
| BASE PARTS WARRANTY | None |
| REGISTERED COMPRESSOR WARRANTY | 7-year |
| BASE COMPRESSOR WARRANTY | None |
| REGISTERED REMOTE WARRANTY |
1-year |
| BASE REMOTE WARRANTY | None |
| REGISTERED LABOR WARRANTY | None |
| BASE LABOR WARRANTY | None |
| HAS BATTERIES |
Yes |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
Yes |
| CONTAINS AEROSOL |
Yes |
| CONTAINS COMPRESSED GAS |
Yes |
| PROPOSITION 65 WARNING | Yes |
|
RESTRICTED STATES |
GU, PR, VI |
|
NET DEPTH (IN) |
30.47 |
|
NET HEIGHT (IN) |
9.80 |
|
NET WIDTH (IN) |
43.31 |
|
NET WEIGHT (LBS) |
90.39 |
|
GROSS DEPTH (IN) |
31.69 |
|
GROSS HEIGHT (IN) |
12.40 |
|
GROSS WIDTH (IN) |
51.38 |
|
GROSS WEIGHT (LBS) |
106 |
| FREIGHT CLASS | 85 |
