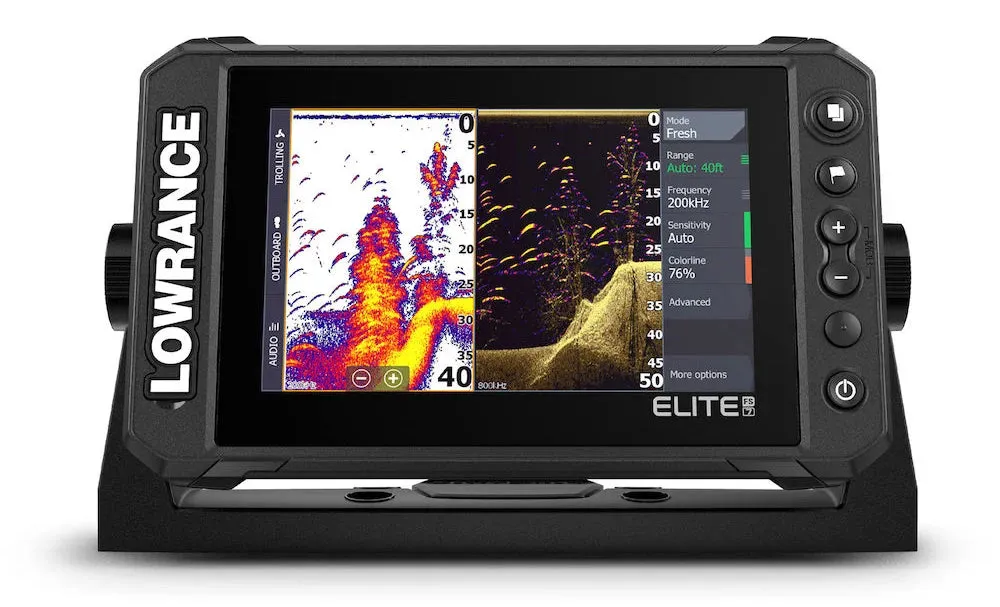

Elite FS™

The new Elite Fishing System (FS) gives you access to the full line-up of Lowrance fish finding tools – including ActiveTarget™ Live Sonar, Active Imaging™ and preloaded C-MAP Contour charts – to help you make the most of your time on the water.

The Elite Fishing System (FS) combines the power of Lowrance's proven and newest fish finding tools with a more affordable display that's easier to use and install. From ActiveTarget™ live sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to preloaded C-MAP® Contour™ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.

FEATURES

ActiveTarget™ Live Sonar ready
Active Imaging 3-in-1 ready
FishReveal™
Preloaded C-MAP® Contour inland and coastal charts with high resolution, bathymetric 1-foot contours on 15,000 U.S. Lakes and 9,400 lakes in Canada
Mapping options including C-MAP, Navionics® and more
C-MAP® Easy Routing, Navionics® Autorouting capability
C-MAP Genesis Live onscreen mapping
High-resolution multi-touch touchscreen
Integrated wireless, NMEA 2000® and Ethernet connectivity
Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

NETWORKING: For the first time ever, Ethernet networking comes to the Lowrance Elite family, share sonar, charts, waypoints and other user data between multiple displays. Support and control of NMEA2000® devices, build the complete Elite Fishing System for freshwater or saltwater.

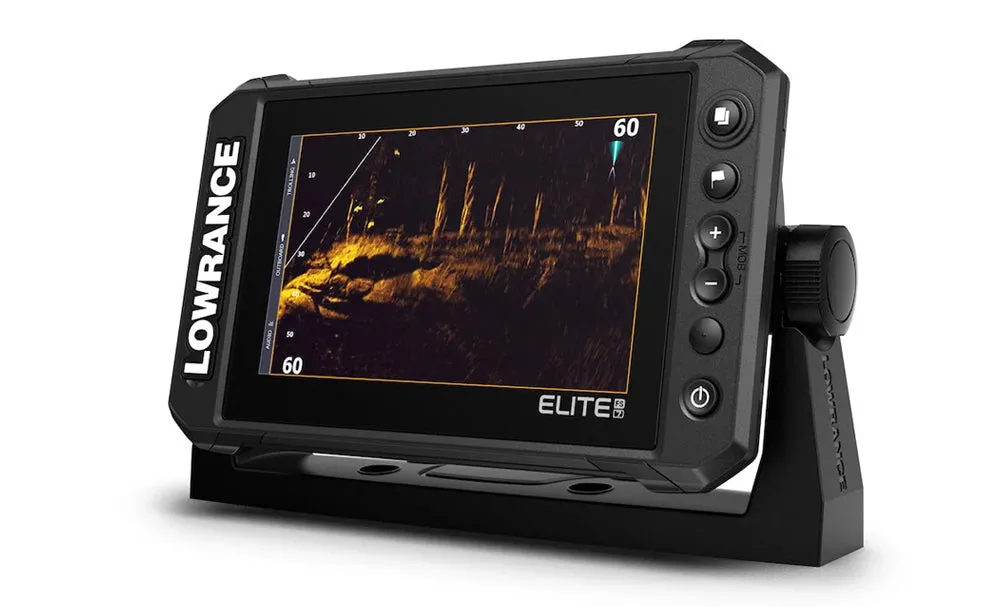

ACTIVE IMAGING: Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure-imaging technology.

ACTIVETARGET: Watch high-resolution images of fish movements – tracking them as they swim in and around cover with ActiveTarget Live Sonar. When you see how fish are located near structure and watch them respond to your lure, you will know if your current technique is working, or if it’s time to make an adjustment – information that is harder to get from traditional sonar or structure imaging.

Track fish and your presentation with high-resolution views in front or below your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat, perfect for finding bait balls and big schools of fish. Game on.

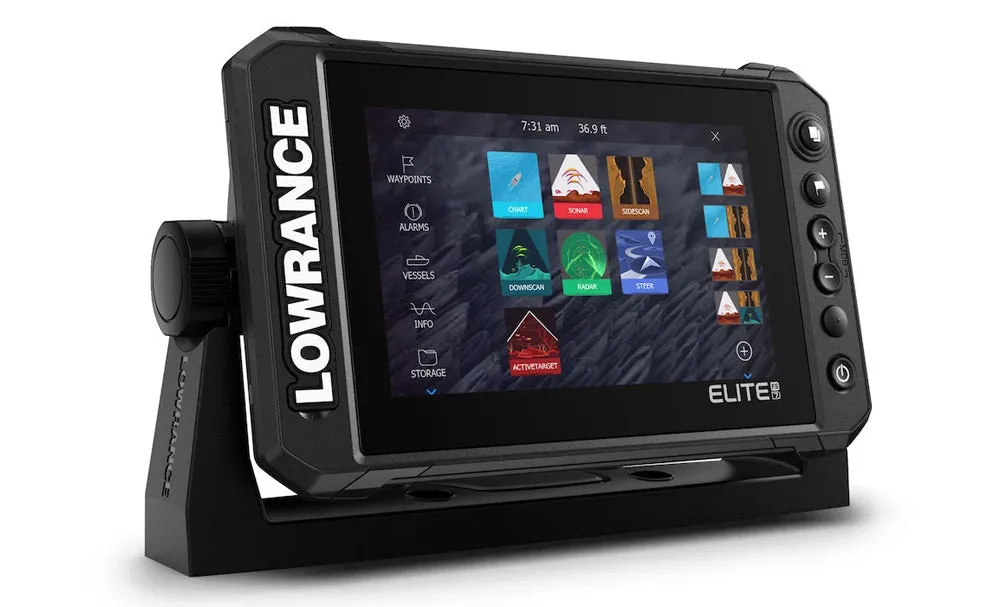

HIGH RESOLUTION MULTITOUCH SCREEN: The best screen yet in our Elite Series, multi-touch with a flat glass screen and anti reflective coating gives great visibility in all light. A single user programmable key allows for quick selection of those vital and most used interactions.

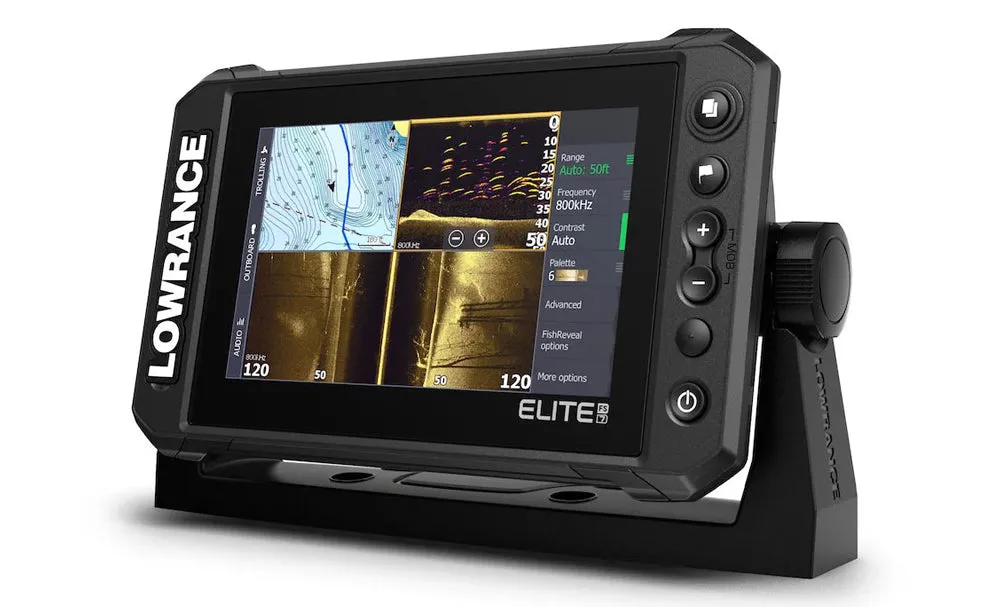

MAPPING: Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Contour™ inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 15,000 U.S. lakes and 9,400 lakes in Canada. Simply switch on Genesis Live for real-time mapping too.

SPECIFICATIONS

Display Sizes: 7" or 9"
Screen Brightness: >1200 nits
SD Card Storage: 1 micro SD card up to 32GB
Ethernet Ports: 1 x 100Mbit
Warranty Period: 1 Year 4 additional years of upgrade options Totaling 5 years
Weight: 1.90 lbs. (0.90 kg)
Update rate: 10 Hz
GPS: 10 Hz Internal high-sensitivity WAAS EGNOS MSAS
Shock Vibration: 100,000 cycles of 20 G
Compass Safe: 12" (300mm)
Supply Voltage: 12v DC (10.8-17VDC)
GPS Receiver Channels: 16
NMEA 2000 Connectivity: 1x Micro-C
Power Consumption max: 2.0A @ 13VDC with backlight on full
Power Consumption typical: 2.0A @ 13VDC with backlight on full
Power Consumption min: 2.0A @ 13VDC with backlight on full
Position Accuracy: 20m RMS
Waypoints, Routes, Tracks: 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Time to First Fix: 30s
Recommended Fuse Rating: 3A
Storage Temperature Range: 4° F to 140° F (-20° C to 60° C )
Radar compatibility: 4G (Broadband) 3G (Broadband) Halo20 (Pulse Compression Dome Radar) Halo20 (Pulse Compression Dome Radar) Halo24 (Pulse Compression Dome Radar)
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
Viewing Angles: 50° top 60° bottom 70° left/right
Humidity: 60° C, 95% relative humidity (RH) for 18 hours
Display Resolution: 800x480
AIS: AIS Chart overlay. Target vessel details.
Charts supported: C-MAP (MAX N, MAX N ) C-MAP Genesis C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV Platinum ) Insight (Pro and HD) Lowrance Regional Mapping Partners
Cartography included: C-MAP Contour (US models)Navionics base map (AMER, AUS/NZ and ROW models)
Correction: DGPSWAASMSASEGNOSGLONASS
Mounting Type: Gimbal Bracket or Dash Flush Mount
Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
Sonar Compatibility: Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with: SonarHubStructureScanStructurreScan 3DLiveSightActive Target
Item Connectivity WiFi: Internal 802.11b/g/n
Waterproof Rating: IPX7 with card door closed
Interface: Multi-Touch Touchscreen Zoom /-MOB = ( /- combined) Pages Waypoint Light/Power
Internal Storage: None
PC Connectivity: None
Video: None
Digital Switching: None
Autopilot: Outboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor (requires Motorguide PinPoint Gateway)
Backlight Color: Pure White LED
Weather: SiriusXM via WM-4 (USA only)
Multimedia: SonicHubSonicHub2FusionLink products any NMEA 2000 compliant Marine Audio products
