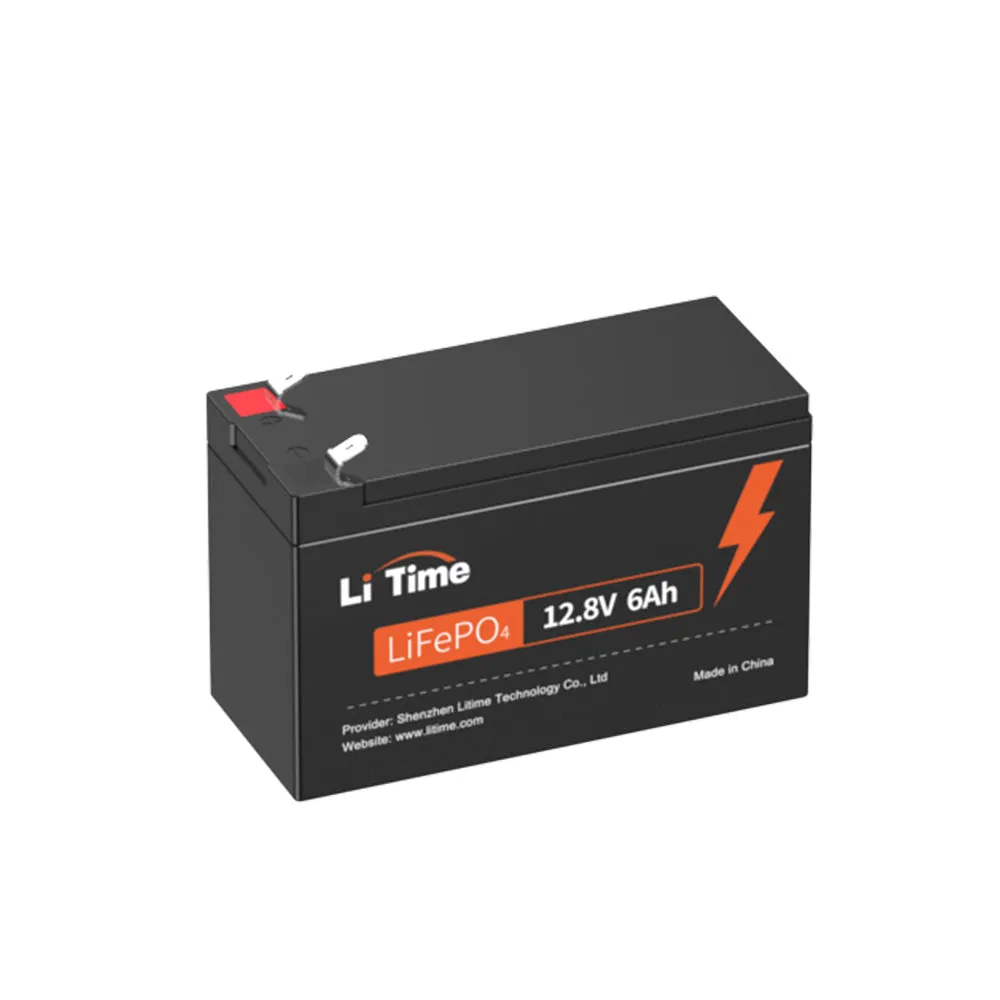

LiTime 12V 6Ah LiFePO4 Battery - Exceptional Performance and Longevity

• Powerful Performance: Higher energy density, greater power, and better stability than traditional lead-acid batteries.
• Extended Lifespan: Up to 10 years with a low self-discharge rate. Supports 4000 cycles at 100% Depth of Discharge (DOD) and State of Charge (SOC).
• Comprehensive Protection: Built-in 6A Battery Management System (BMS) provides complete protection against overcharging, over-discharging, over-current, over-temperature, and short circuits.
• Certifications: Certified by UL, FCC, CE, RoHS, and UN38.3, ensuring superior safety and environmental friendliness with a stable LiFePO4 cell structure that prevents burning or explosions.
• Versatile Applications: Ideal for a wide range of uses including fish finders, kid's scooters, LED lights, alarm systems, security cameras, game machines, outdoor camping gear, and hair curlers.
• Warranty and Support: 3-year warranty with professional technical assistance available via phone or online services. Quick feedback within 24 hours.

Technical Specifications:

• Cell Type: LiFePO4 Cylindrical
• Cycle Life: 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
• Nominal Voltage: 12.8V
• Rated Capacity: 6Ah
• Energy: 76.8Wh
• Max Expansion: 4P4S
• Internal Resistance: ≤50mΩ

Battery Management System (BMS):

• Max Continuous Output Power: 76.8 W
• Max Continuous Charge Current: 6A
• Max Continuous Discharge Current: 6A
• Max Discharge Current (5 Seconds): 30A

Charging Specifications:

• Charge Method: CC/CV
• Charge Voltage: 14.4V ± 0.2V
• Recommended Charge Current: 1.2A (0.2C)

Temperature Ranges:

• Charge Temperature: 0℃ to 50℃ (32℉ to 122℉)
• Discharge Temperature: -20℃ to 60℃ (-4℉ to 140℉)
• Storage Temperature: -10℃ to 50℃ (14℉ to 122℉)

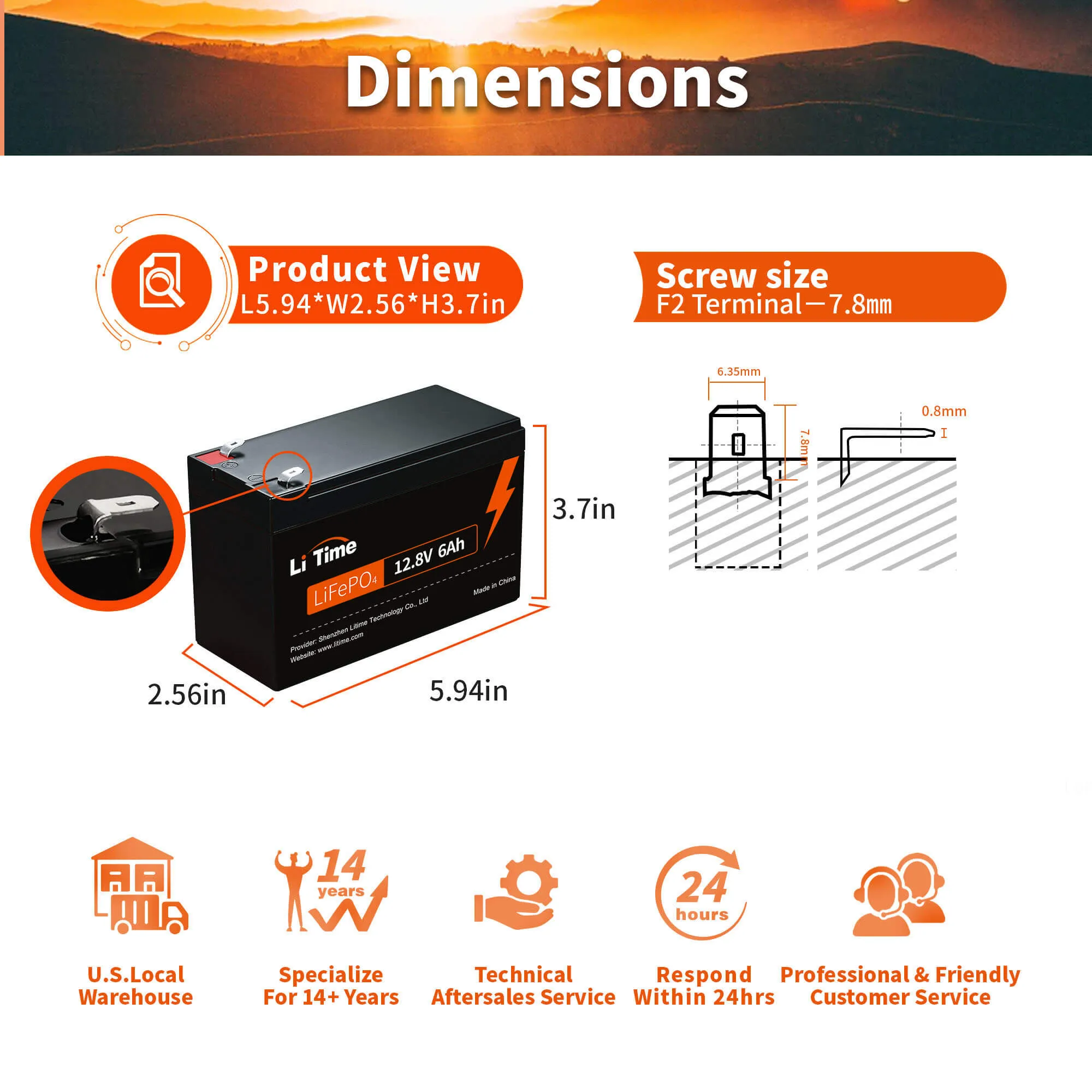

Physical Characteristics:

• Terminals: F2
• Weight: Approx. 1.76 lbs
• Dimensions: L5.94 x W2.56 x H3.7 inches
• Housing Material: ABS (Flame Retardant Plastic)
• Protection Class: IP65
