Operating on all 3G and 4G frequencies in Australia and abroad this high-grade antenna can be used in a range of residential commercial and industrial mobile broadband applications on any mobile network.

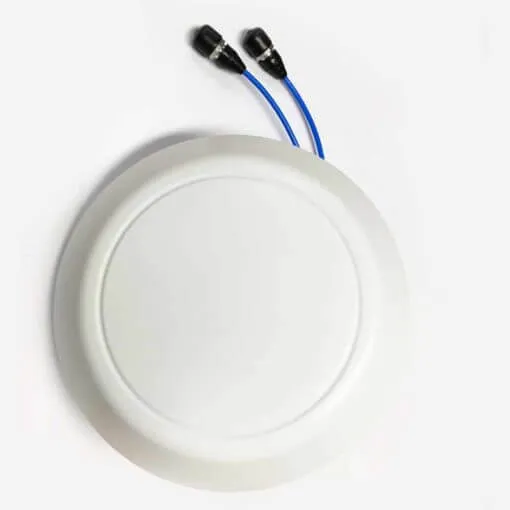

This is the ideal indoor antenna for Cel-Fi repeater systems. Indoor dome antennas are designed to be mounted to the ceiling of your building to provide consistently distributed mobile phone service from your Cel-Fi repeater/booster. The antenna is compact with a visually unobtrusive design similar to a smoke alarm.
The Blackhawk MIMO Ceiling Antenna will provide the perfect solution for voice and data applications. Perfect for repeater applications that require a 360° beamwidth for complete internal coverage.
| Frequency Range MHz | 698-960 / 1690-2700 |
| Gain dBi | 3.0 / 4.5 |
| VSWR | 1.8 / 1.7 |
| Polarization | Linear H/V for each Radiator |
| Isolation | >19/23 dB |
| PIM 3rd Order 2x20W | -150 dBc |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 90° / 46° |
| Input Impedance | 50 Ω |
| Maximum Power | 50 |
| Lightning Protection | DC Ground |
| Connector | 2×N-female |
| Dimensions | Ø215×47 mm |
| Weight | 0.45 kg |
| Radiator Material | ABS (UV Stabilized) |
| Operating Temperature | -40°C to 65 |
| Mounting | Ceiling Mount |
| Weight | 0.55 kg |
|---|
