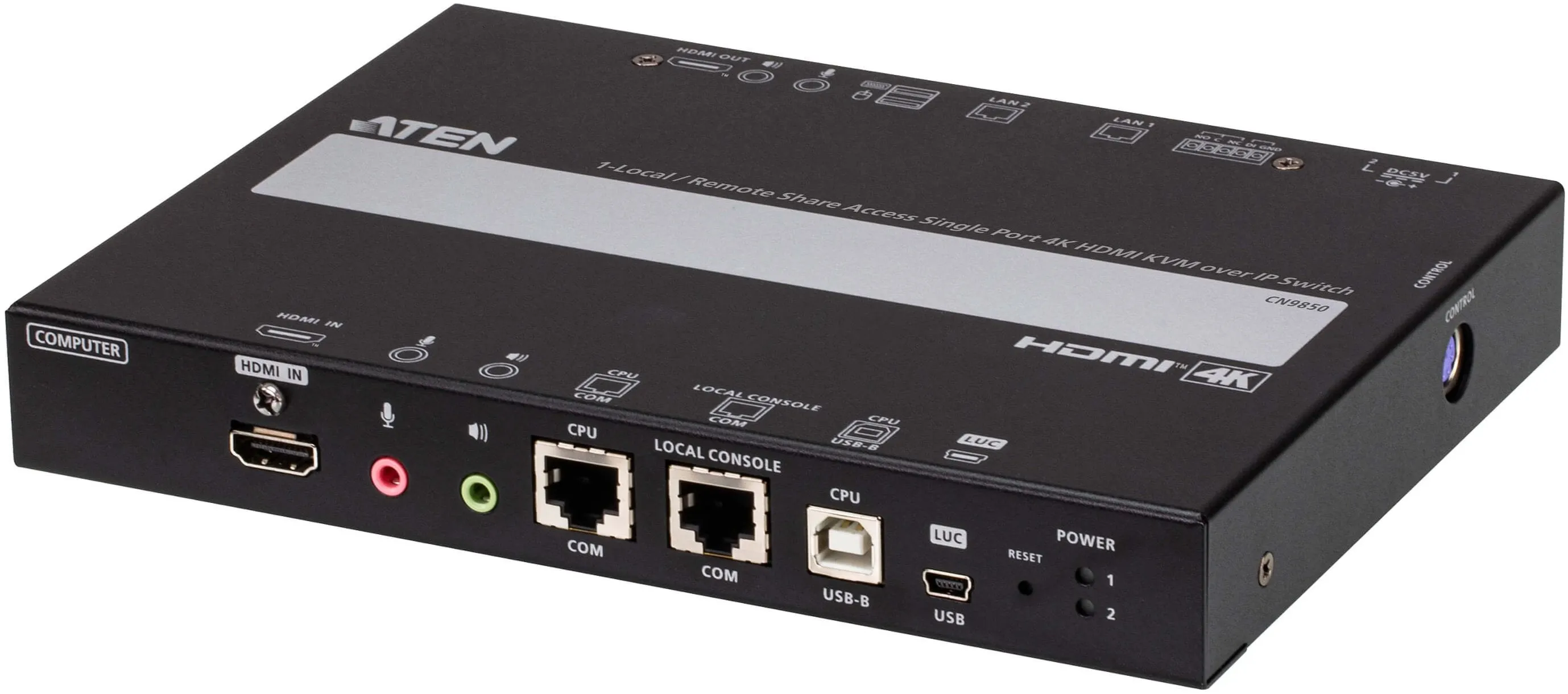

ATEN’s latest KVM over IP remote computer management solution Single Port 4K HDMI KVM over IP Switch  –  CN9850

- 1 Bus local/remote sharing up to 32 people logged in at the same time

-Non- intrusive secure access without software

- HDMI 4K DCI@30Hz

- FPGA image processing optimizes image quality

-Proximal USB Console  OSD

-Stereo Audio Mic

- IP remote control Server/KVM

- 5-PIN terminal block  Dual COM port high-level control

-Power detection and LED status display

- Dual LAN Dual Power security design

-Can be integrated with CCVSR/CC2000/PadClient and other software

ATEN, the world's No. 1 KVM Switch brand, launches a new member of the KVM over IP switch remote computer management series  . CN9850 supports multiple functions: FPGA image processing, high-definition resolution , HDMI 4K@30Hz , 5-PIN Terminal Block Dual Com Port is used to connect high-end control devices and systems, Dual LAN Dual Power dual protection design, power detection and LED status display , supports stereo Audio and microphone , plus consistent software-free non-intrusive secure access , near-end The OSD Console and virtual media functions allow traditional KVM multi-computer switches to be instantly upgraded with Over-IP remote management capabilities. Administrators can remotely monitor and manage computers using a standard web browser or Windows and Java applications. Use standard Cat5e cables to connect to the Internet, intranet, LAN or WAN , and use customized KVM cables to connect to local KVM switches or servers. Since the CN9850 uses TCP/IP as the communication protocol, the connected server or KVM switch can be accessed by any computer through the network – no matter where the computer is located in the world, whether it is Home Office , Remote Office , or a large organization / Factory, or multinational enterprise management are very suitable.

No software required. Non-intrusive secure access is different from software-based remote desktop access. CN9850 does not operate with a program. Non-intrusive access is more secure and there is no fear of lurking viruses . It ignores the system OS , including Windows , Mac , Linux , and Sun. Can be used ; no need to occupy system resources , improving control fluency. After the hardware is connected to the computer, the user can have 100% control over the computer's BIOS level settings to the daily operations of the entire system. All devices such as sound, video, keyboard, mouse, and USB peripherals can be accessed remotely, making it extremely convenient. It is the same as operating it in person on the computer /server . Convenient for high-end control needs in factory / scientific research applications, CN9850 provides 5-PIN terminal block  Dual COM port to control computer switches , connect sensors , alarms , corresponding control panels , etc., comprehensively improving the safety of remote and near-end control and degrees of freedom. Make full use of existing network facilities, eliminating the need for different employees to operate computers on site, improving work efficiency and synergy, while also reducing work time and money costs .

HDMI 4K DCI@30Hz

The FPGA image processor of CN9850 can provide HDMI 4K@30Hz high-quality resolution.Supports Windows/Java/Web/PadClient

In addition to the Windows/Java Client used by the CN series for remote access, the CN9850 also supports WebClient . There is no need to install Java or any software. Users can log in and access remote servers from anywhere through the Internet . ATEN also provides an iOS APP - PadClient . Through its intuitive user interface, users can simply and easily connect directly to the CN9850 control computer from their iPad .

Can be integrated with CCVSR/CC2000/PadClient and other software

To further enhance the control function of CN9850 , ATEN is equipped with CC2000 central management software ( requires additional purchase ) and CCVSR skimming system ( requires additional purchase ) , which facilitates centralized access to computers /servers in different places and records the operation of key computers /servers . Provides extra security.
