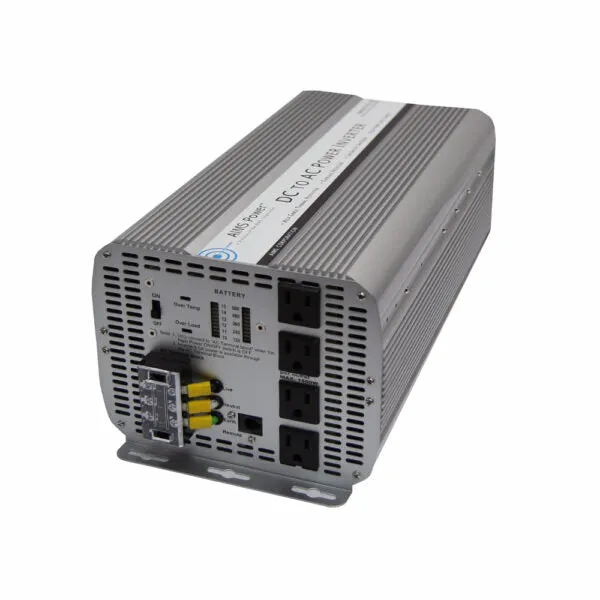

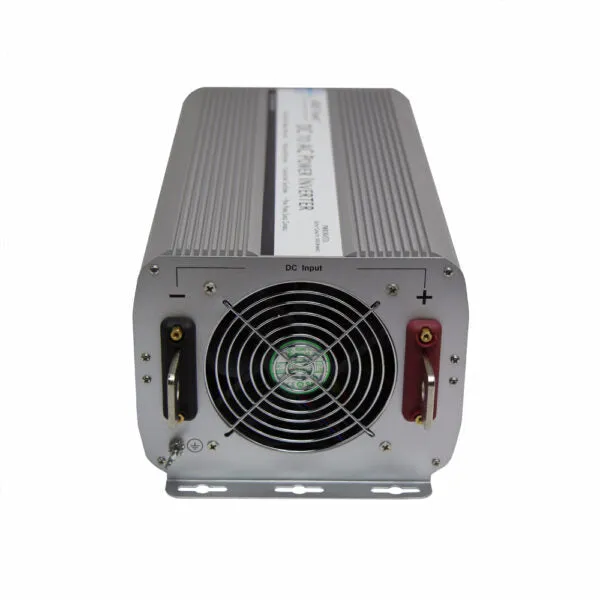

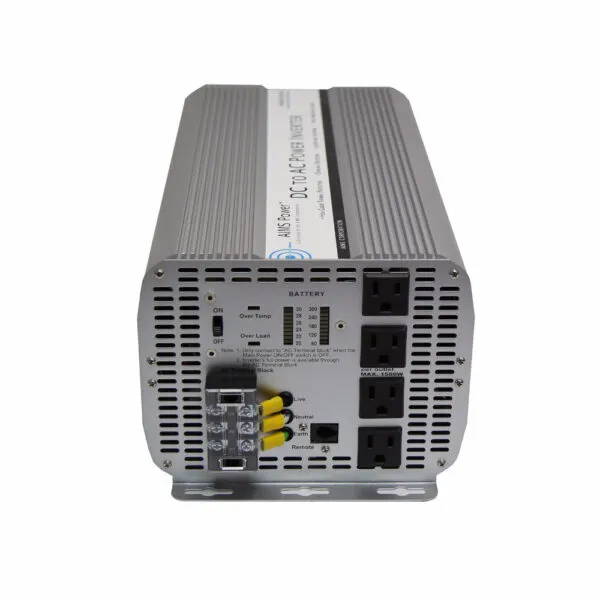

The AIMS Power 5000 watt inverter converts 36 volt DC power into AC electricity, suitable for running most household appliances or tools. It’s ideal for off-grid back-up power at home, cabins, boats, or larger solar systems. This unit operates efficiently at higher loads due to its 36 volt DC capability. It’s perfect for users with a 36 volt DC source or multiple batteries. The inverter is quiet, non-polluting, and features four AC outlets with a maximum output of 1500 watts. It includes safety features like over-temperature and over-load LED indicators. Now available for purchase on Appliance Guys.
Appliance Guys Exclusive Benefits:
- Lifetime Phone Support: Expert assistance always within reach.
- Open 7 Days a Week: Convenience tailored to your schedule.
- Price Match Guarantee: Shop confidently, knowing you're getting the best deals.
Features
Features
Here are the professional and accurate features of the product:
- 5000 Watt max continuous power
- 36 Volt Power Inverter
- Modified sine wave
- Volt meter on front panel to monitor your battery voltage
- Amp meter on front panel to monitor your current use (rate at which battery is drained)
- AC Direct Connect Terminal
- Over Temperature LED indicator
- Over Load LED indicator
- Quadruple AC receptacle that can be used with any separate splitter to provide even more outlets
- On/off switch
- Over Temperature protection
- Over Load protection
- Single cooling fan operation thermally controlled
- Internally fuse protected
- AC output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-wired for remote on/off switch
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
Specifications
Specifications
Power and Efficiency:
- Continuous output power: 5000 Watts
- Surge power capability (peak power): 10,000 Watts
- DC input / operating voltage: 30 to 48 Volts
- Output voltage: 120 Volts AC /- 10%
- Output wave form: Modified sine wave with phase correction
- Output frequency: 60 Hz /- 1 Hz
- No load current: < 0.9 Amps
- Full load efficiency: 90%
- 1/3 load efficiency: 95%
Protection and Safety:
- Battery low voltage alarm: 31 /- 0.5 Volts
- Battery low voltage shutdown: 28 /- 0.5 Volts
- High input voltage protection: 48 volts
- Low input voltage shutdown: 28 volts
- Internal fuse protection
Temperature:
- No load minimum operating temperature: -15 degrees Celsius
- Full load maximum operating temperature: 55 /- 5 degrees Celsius (automatic shutdown)
Dimensions
Dimensions:
- Length: 16.92 inches
- Width: 7.95 inches
- Height: 6.10 inches
Weight:
- Unit Weight: 16.72 lbs
- Boxed Weight: 20 lbs
