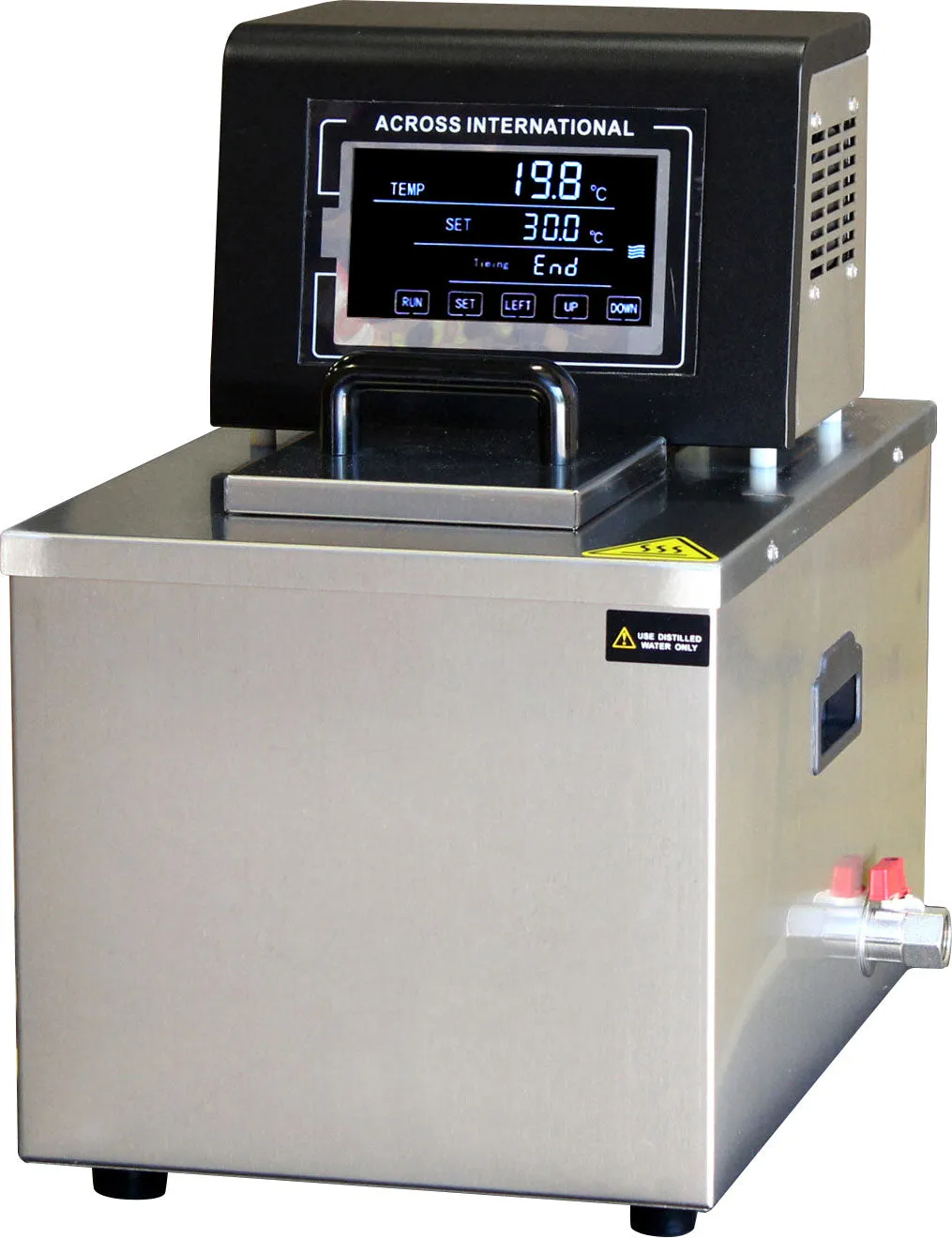

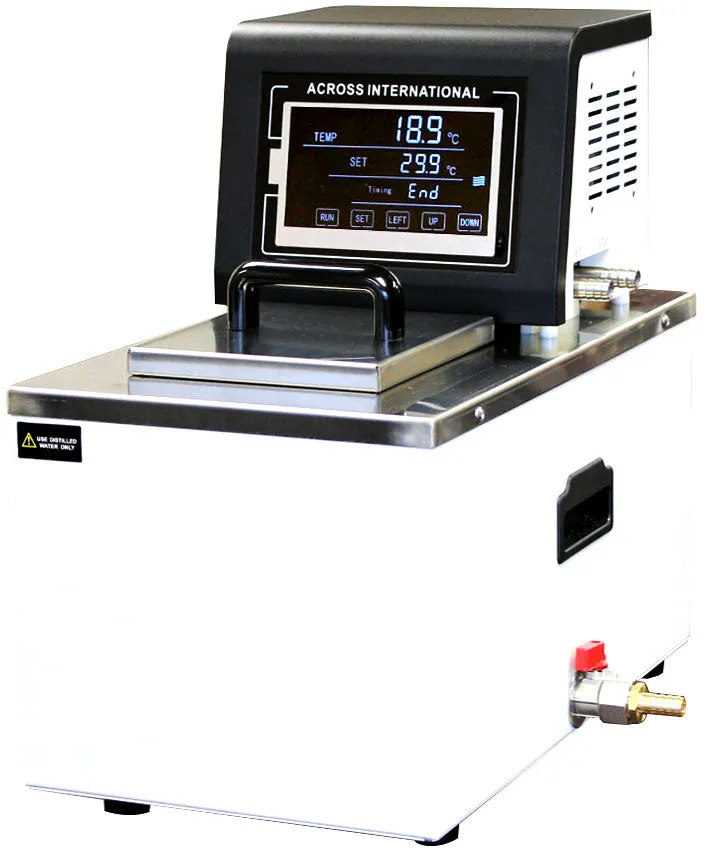

Name: Ai 100°C 7L Capacity SST Compact Heated Recirculators
SKU: 623507

Product Details ＋

Overview

The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.

Features:

ETL tested to UL and CSA standards
Powerful 1,500 or 2,500 watts heater
Adjustable pumping speed up to 20 liters per minute

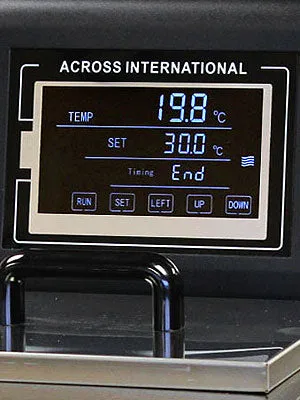

2nd generation 7" TFT touch screen controller

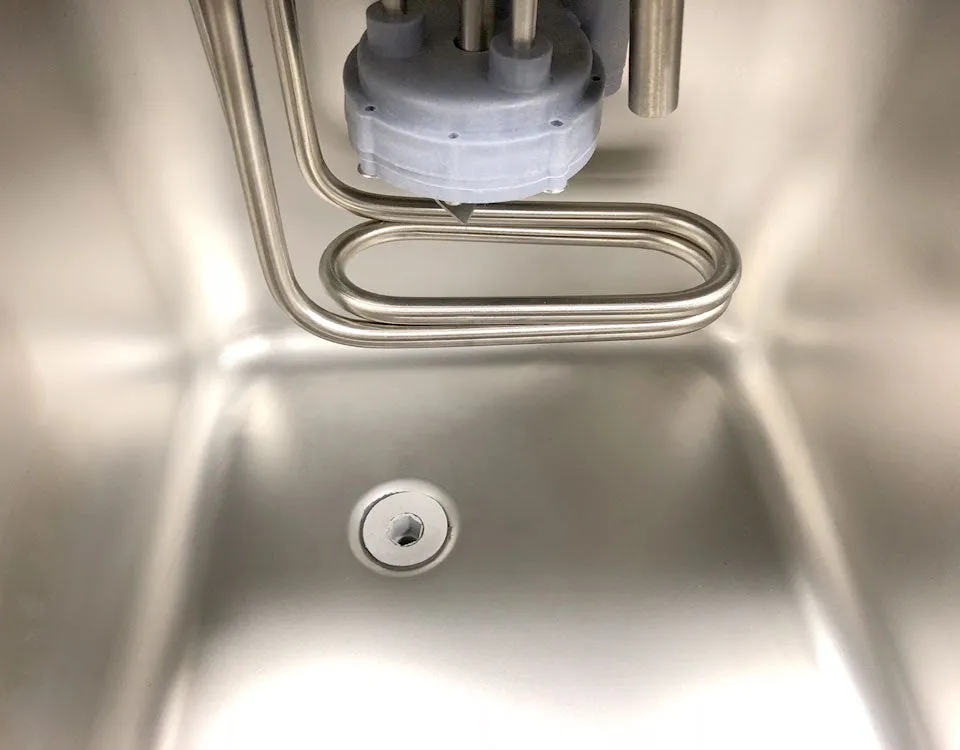

ANSI standard all stainless steel reservoir
All steel construction for durability
Small footprint saves valuable lab space
Connection tubing included
Recommended for 2L to 10L distillation systems

Key Attributes

Type	Stirred / Circulating Baths
Incubation	Yes
Refrigeration	No
Temp Range (°C)	Ambient to 100°C
Capacity (L)	7 L
Circulation	External Only
Brand	Across International
MaxFlow Rate (l/min)	20
Temp Stability (°C)	±2°C
Timer	Yes
Alarms	Yes
Digital or Mechanical	Digital
Data connection	No
Tank Material	Stainless Steel
Sample Agitation	No
Media Racks Available	No
Warranty (years)	1
Weight (lb)	130
Width (in)	9.5
Depth (in)	12
Height (in)	7.5

Manufacturer Specifications

Model	H100-7	H100-7sst
Temperature range	Ambient to 100°C (No load)
Electrical requirements	110V 60Hz 1-Phase 1,600 watts	220V 60Hz 1-Phase 2,600 watts
Heating capacity	1,500 watts	2,500 watts
Recirculating pump	Pumping speed: 20 liters per minute, adjustable
	Maximum head: 16 feet or 5 meters
Reservoir	Dimensions: 9.5 x 12 x 7.5" (WxDxH)
	Material: Type 304 stainless steel
	Capacity: 7 liters or 1.9 gallons
	Thermo fluid connection: 3/8" hose barb x 2
	Thermo fluid drain port: 3/8" hose barb with on/off valve
Temperature controller	Type: Digital microprocessor PID controlled
	Display: 7" touch screen
	Display unit: Celsius °C
	Temperature step: 0.1°C
	Temperature accuracy: /- 2°C
	Temperature range: Ambient to 100°C
Working environment	-15°C/5°F to 25°C/77°F, at <66% humidity
Built-in swivel casters	No
Unit/shipping dimensions	10.5 x 17 x 17" / 17 x 20 x 22" (WxDxH)	12 x 17 x 18" / 17 x 20 x 22" (WxDxH)
Unit/shipping weight	30 Lbs / 36 Lbs
Safety	Short circuit and ground protection
	Over-current protection
	Over-temperature protection
	Upper/lower temperature alarm protection
Warranty	One year
Compliance	UL 61010-1 :2012 Ed.3 R:29Apr2016
	CSA C22.2#61010-1 :2012 Ed.3
