Product Details
＋
Overview

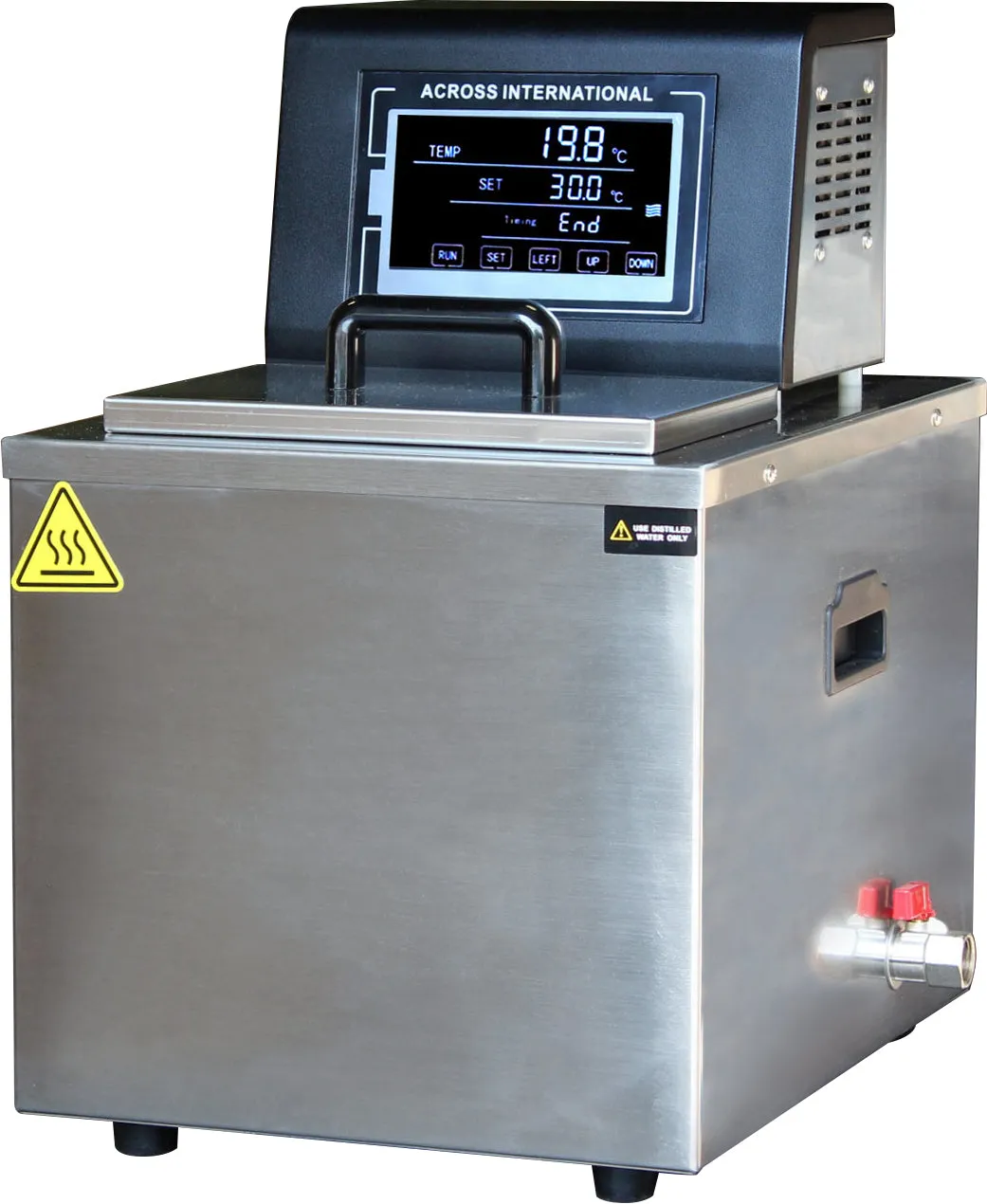

The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.
Features:
- ETL tested to UL and CSA standards
- Powerful 2,500 watts heater
- All stainless steel finish
- Adjustable pumping speed up to 20 liters per minute
- 2nd generation 7" TFT touch screen controller
- ANSI standard all stainless steel reservoir
- All steel construction for durability
- Small footprint saves valuable lab space
- Connection tubing included
- Recommended for 2L to 10L distillation systems
Key Attributes
| Type | Stirred / Circulating Baths |
| Incubation | Yes |
| Refrigeration | No |
| Temp Range (°C) | Ambient to 100°C |
| Capacity (L) | 15 L |
| Circulation | External Only |
| Brand | Across International |
| MaxFlow Rate (l/min) | 20 |
| Temp Stability (°C) | ±2°C |
| Timer | Yes |
| Alarms | Yes |
| Digital or Mechanical | Digital |
| Data connection | No |
| Tank Material | Stainless Steel |
| Sample Agitation | No |
| Media Racks Available | No |
| Warranty (years) | 1 |
| Weight (lb) | 30 |
| Width (in) | 9.5 |
| Depth (in) | 12 |
| Height (in) | 7.5 |
Manufacturer Specifications
| Model | H100-15sst |
| Temperature range | Ambient to 100°C (No load) |
| Electrical requirements | 220V 60Hz 1-Phase 2,600 watts |
| Heating capacity | 2,500 watts |
| Recirculating pump | Pumping speed: 20 liters per minute, adjustable Maximum head: 16 feet or 5 meters |
| Reservoir | Dimensions: 9.5 x 12 x 7.5" (WxDxH) Material: Type 304 stainless steel Capacity: 15 liters or 4 gallons Thermo fluid connection: 3/8" hose barb x 2 Thermo fluid drain port: 3/8" hose barb with on/off valve |
| Temperature controller | Type: Digital microprocessor PID controlled Display: 7" touch screen Display unit: Celsius °C Temperature step: 0.1°C Temperature accuracy: /- 2°C Temperature range: Ambient to 100°C |
| Working environment | -15°C/5°F to 25°C/77°F, at <66% humidity |
| Built-in swivel casters | No |
| Unit/shipping dimensions | 12.5 x 17 x 19.25" / 17 x 20 x 22" (WxDxH) |
| Unit/shipping weight | 30 Lbs / 36 Lbs |
| Safety | Short circuit and ground protection Over-current protection Over-temperature protection Upper/lower temperature alarm protection |
| Warranty | One year |
| Compliance | UL 61010-1 :2012 Ed.3 R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3 |
